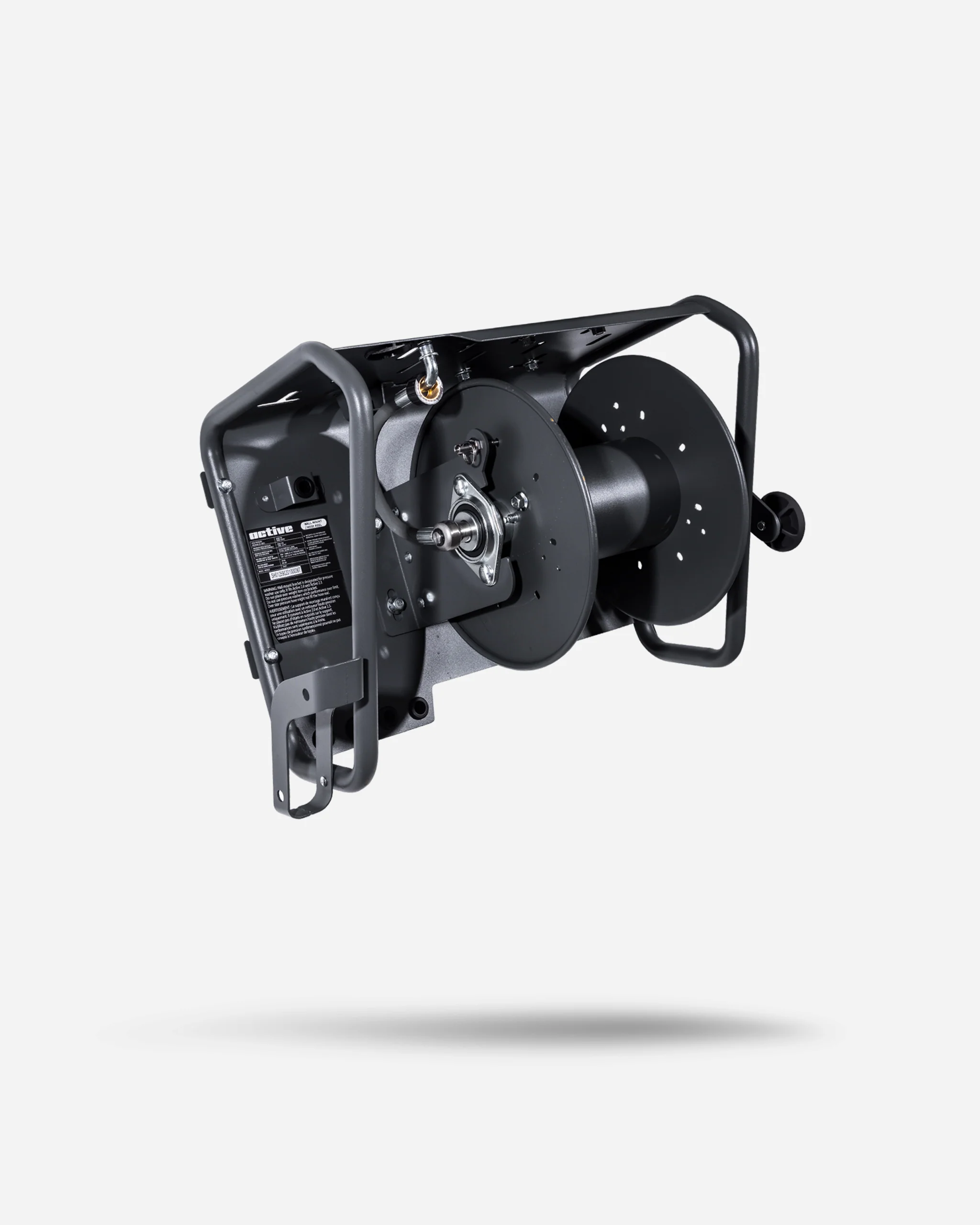

Adam's Active Hose Reel Wall Mount System

Backordered, Expected Ship Date End Of May. Not Eligible For Discounts

Adam's Active Hose Reel Wall Mount System is compatible with truly any pressure washer up to 88 lbs. This wall mountable system allows you to get your pressure washer setup off the floor, out of the cabinet and onto the wall. Store your pressure washer, pressure washer hose, foam cannon, snub nose, extension wand and more all on one simple mountable solution. All fittings will be accessible with all Active Products, plus we threw in an additional adapter in case you want to upgrade your hose and use our Steel Braided Super Flex Pressure Washer Hose.

• Extremely Easy Wall Mountable With 16" Stud Spacing
• Hose Reel Supports Up To 100' of Hose Either 3/8" or 5/16" In Diameter
• Includes Adapter For Premium Steel Braided Hose Attachment To Hose Reel
• Mount Any Pressure Washer Up To 88 lbs On Top Of This Unit
• All Necessary Mounting Hardware Included



More Product Specifications & Details:

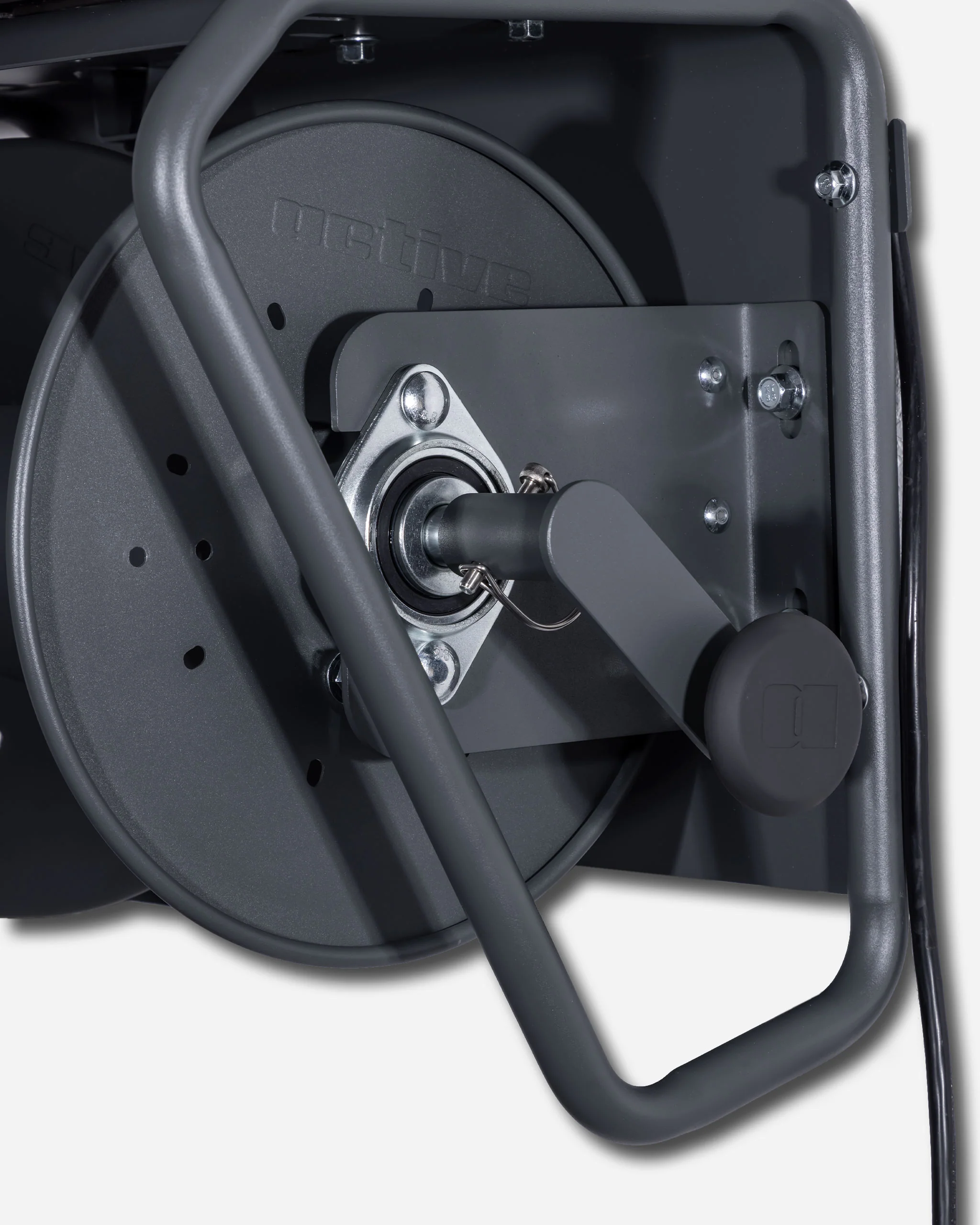

Hose reel

• Inlet fitting: 3/8” QC female coupler
• Outlet fitting: M22x1.5-14
• Extension hose pre-installed
• Reel rotation lock: release lock pin before turning the reel
• Hand crank: customer need install hand crank and lock by pin
• Hose clamp: customer needs to make adjustment to secure hose
• Stainless steel (304) reel valve

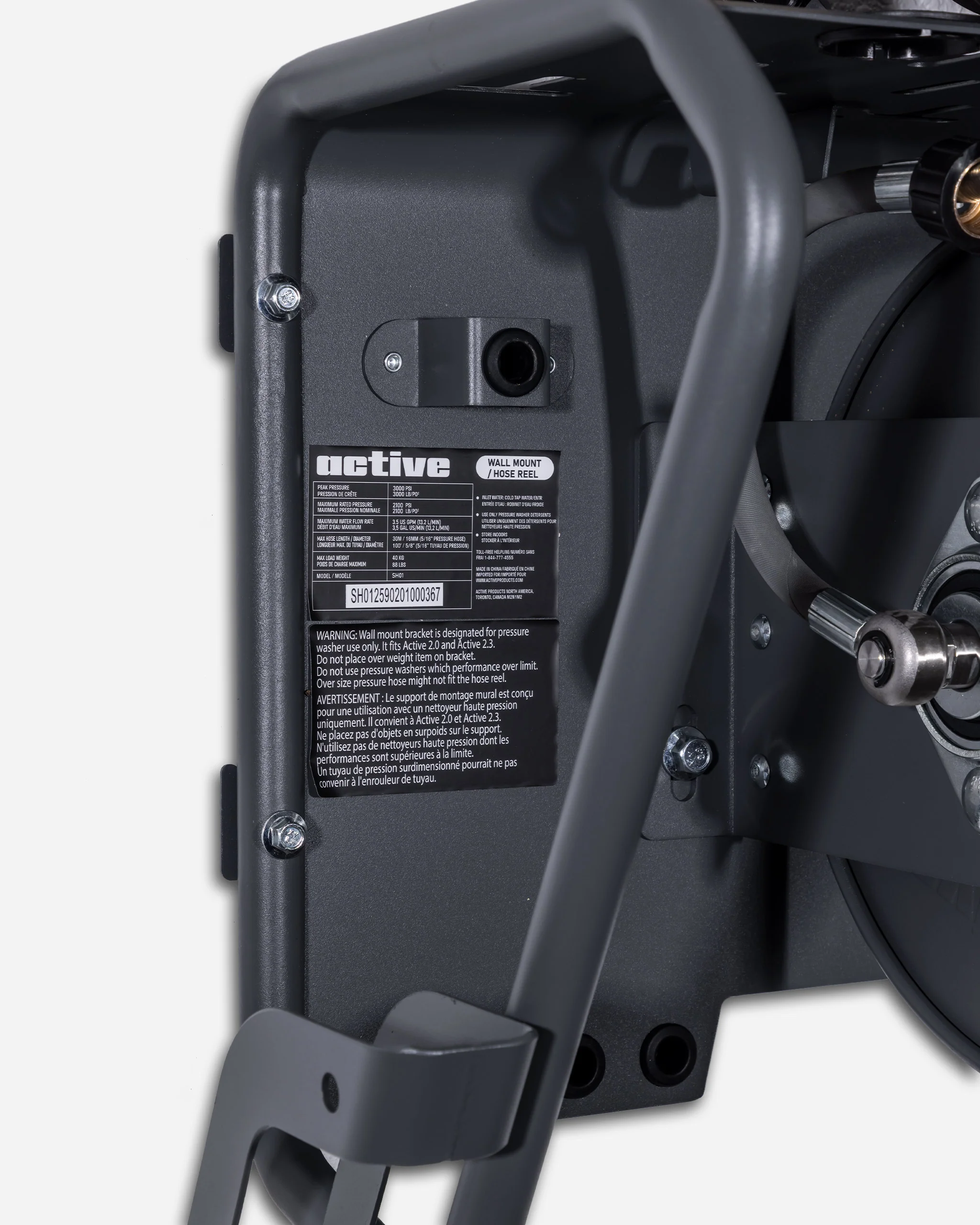

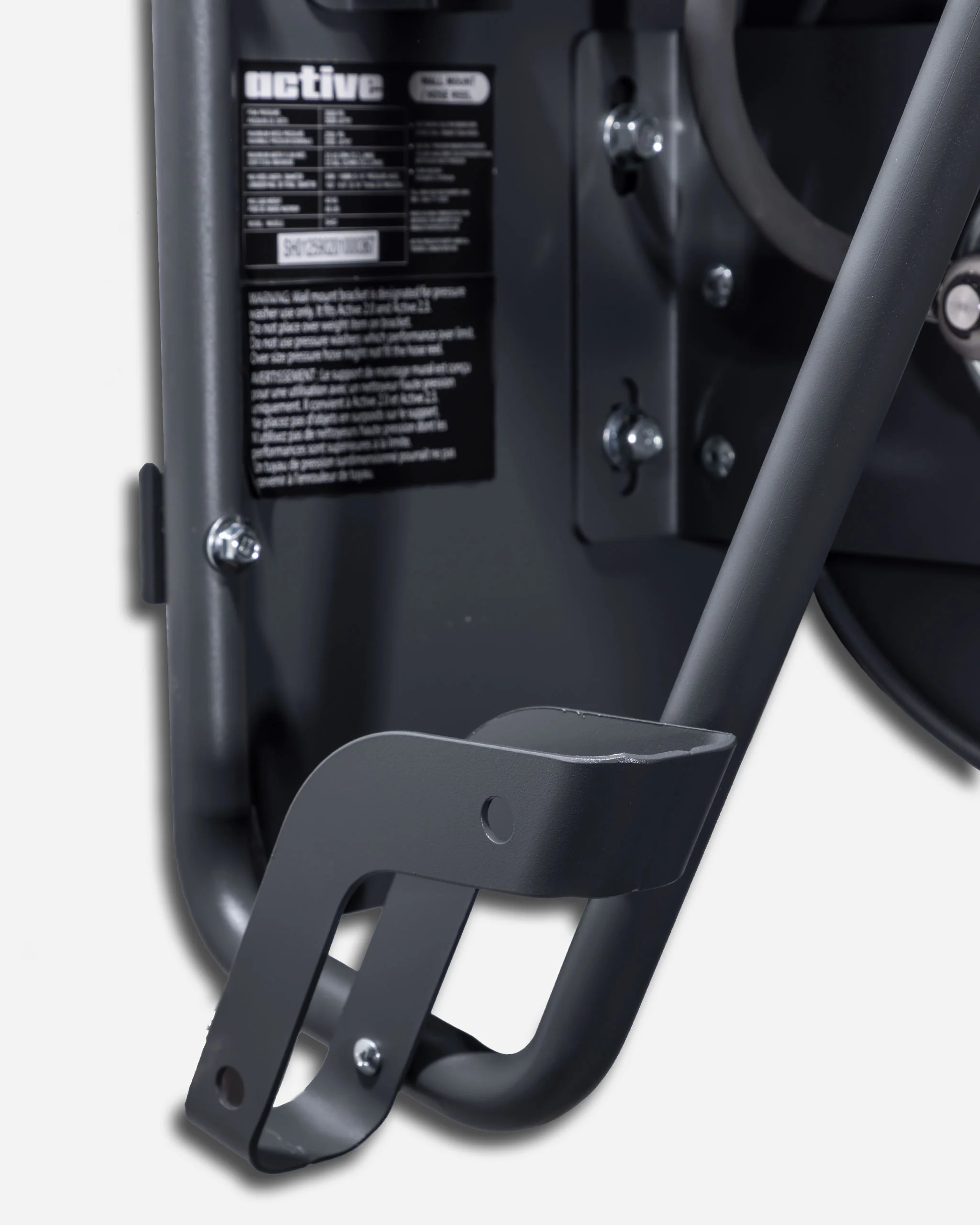

Metal frame

• Hose reel is pre-installed on frame
• Customer installation is required for wall mount mode
• Customer installation required for gun holder and fasten by screw
• Customer adjustment is required for hose clip

Tip rest seat

• 4 pcs rubber grommets pre-attached on rear wall

Foam cannon rest seat

• 1pc rubber grommet pre-attached on mounting bracket

Wand rest seat

• 1pc rubber grommet pre-attached on mounting bracket

Extension hose

• 5/16” rubber hose, 340mm in length
• M22x1.5-14 connector for pressure washer
• Female fitting for jumper hose male fitting (SST304)

Hardware

• 4pcs 6x30 mm screws to fasten mounting plate on the wall
• 4pcs M8x 20mm bolts to secure wall mount to mounting plate
• 2pcs M5x14 bolt to secure gun holder on frame

Accessories

• Hand crank with lock pin
• Mounting plate
• Gun holder
• Hardware kit
• Adapter For Premium Steel Braided Hose Attachment To Hose Reel
